DIY(1)-Replace 18650 battery of G50 Digital Bluetooth Alarm Clock

DIY(1)-Replacing 18650 battery of G50 Digital Bluetooth Alarm Clock

Preamble

G50, quite a cost-effective, versatile Bluetooth digital alarm clock.
The total run-time duration of it isn't long enough.

Its frequent charge cycles are really cumbersome. So I decided to replace its battery with one having greater capacity of about 1500mAh than its current 900mAh. But it may well be better to do it with one of 3500mAh capacity if affordable.

Details are as follows. Neither any bit easy nor difficult.

• Take off its thin plastic font cover plastic panel.

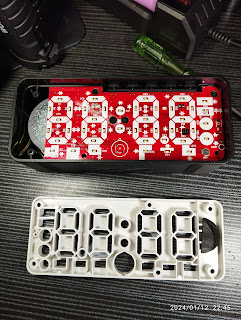

• Inspect how its LEDs work under the cover and separate a white display panel underneath:


• Take out all its inner parts for inspection and battery replacement.
  Pull off the battery line from the board to separate the battery:


• Prepare a new battery for the replacement:


• Let the original battery be stripped off of all its covers to reveal its protection board strip so that its protection structure could be inspected on the whole as follows:


• Separate its connection power lines from the protection board:

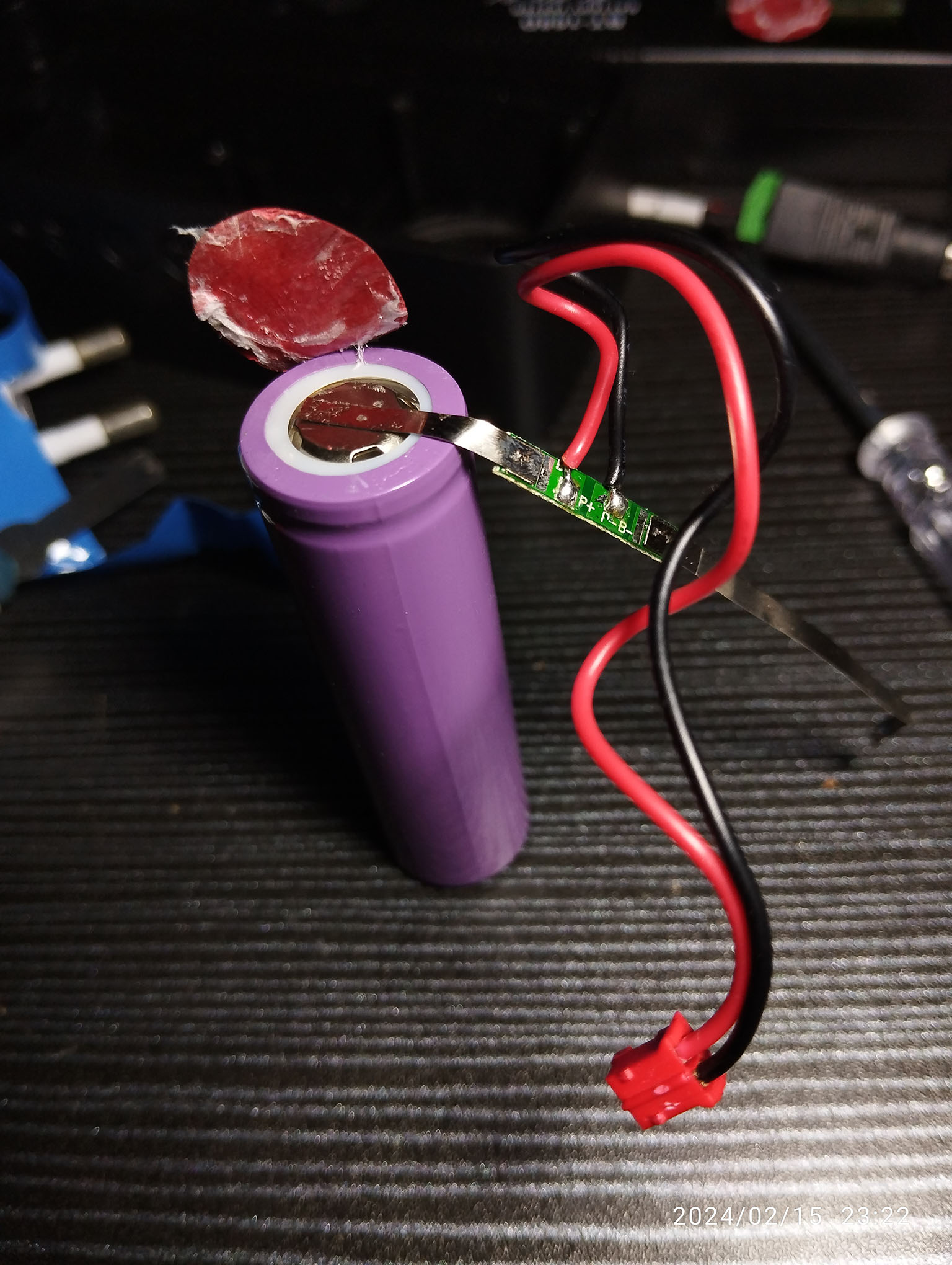

• Time to attach a new protection board strip to a new battery of higher capacity and then to attach the separated power lines to the new board strip:


• Replace the battery with the newly protected one by connecting the replaced powerline in its original place , on the clock's main PCB board, where it was pulled off previously:


• Now, put all the parts together inside its case and position every part where each was.

  Finally, assemble and fix display plates in reverse order as those were disassembled.
  Then close up outmost case covers to finish the task tightening those up with screws.

Done!

Enjoy using the bettered longer-lasting clock/Bluetooth speaker/FM Radio/TF card player/Thermometer:

That's all for the replacement procedure.
Thanks for referring to my customizations.
Enjoy using your enhanced device!

Caution !

The author hereby clearly enunciate that any error, damage or loss to the reader arising from the reader's tasks by following this tutorial is assumed by the reader.

In no cases would the author be held responsible for such occurrences, damages or loss of whatsoever.

So, please be careful following and performing any task based on this article.

BTW, thanks for reading it. Have fun!

Late update: May 02, 2024. GMT 09:00.

---
